Detailed explanation of GCR color separation application in Photoshop

In prepress design, we often use Photoshop Color separation settings to get the right black version, the most commonly used is the GCR color separation method. So, how to carry out GCR color separation setting, how to use different black version for different originals? This paper explains these problems in detail, and discusses how to convert images from RGB mode to CMYK mode after adding black version. And importance, for Printing companies have helped improve the quality of printed products.

GCR color separation settings in Photoshop

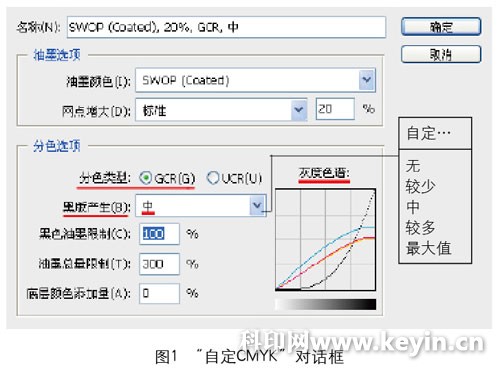

Open Photoshop CS2, select the "Edit" option in the menu, click "Color Settings", select "Custom CMYK..." in the "CMYK (C)" column under "Workspace" and you will see as shown in Figure 1. Dialog.

In Fig. 1, "separation type: GCR (G)" and "black version generation (B)" can be seen. GCR is the abbreviation of Gray Component Replacement, which means “ash component substitution”, that is, in CMYK four-color printing, black ink is used to replace the neutral gray part produced by C, M, Y three-color ink overprinting.

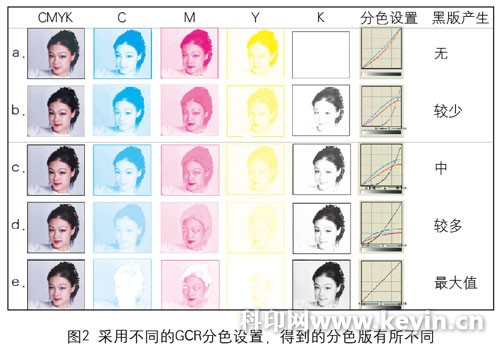

Select "GCR(G)" after "Separation type", and then click the drop-down box after "Black version generation (B)", you can see "Custom..." "None" "Less" "Medium" More "maximum" 6 options. Here, the author elaborates on the substitution of the gray component referred to by the last five options. At the same time, in order to visually indicate the difference of the five color separation methods, the author made five different settings for the same image, and the result is shown in FIG. 2 .
