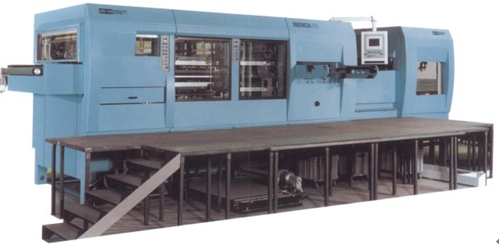

Iberica AG Automatic Vertical Molding Machine

Alibekika is a manufacturer specializing in the manufacture of automatic presses in the printing industry. It aims to provide and produce highly competitive and high-quality products. At present, more than 1,000 sets of automatic molding machines are in use worldwide. Its success stems from continuous technology development and the development of highly qualified teams.

Equipment Model: SRK-144

Technical features:
1. Automatic feeders directly loaded on pallets;
2. Automatic side movement of the feeder platform;
3. Preloaded air curtain device;
4. Automatic non-stop system;
5. Automatic or manual adjustment of feeder head and paper stack top respectively;
6. Feida Taiwan is equipped with: an anti-static board, dual paper monitors, five conveyor belts, two side-push-pull systems, four front layers with photoelectric eyes, automatic adjustment of time paper to the front level;
7. The maximum working pressure 600TM is supported by heavy steel casting, two formwork frames, two 3mm thick shear plates, and easy to control PLC display in production;
8. For ease of stripping, the stripping device is equipped with: an upper stripping template with a crossbar and processing, a quick locking system for the motherboard, a cross-bar and a processed bottom stripping template, and electronic lifting of the upper stripping plate;
9. Blank separation presses are equipped with crossbars and processed upper strips, a universal version of the crossbars, universal processing version of the support arm, automatic non-stop system, automatic insertion of cross paper, with missing paper monitoring The automatic paper storage device for cross-sheet paper is used for quality control, and the automatic paper discharge device for stripping and punching paper is taken out, and the conveying roller and the waste conveyor belt are removed from the mold and installed at the vacant position.

The main technical parameters:
Automatic moulding with stamping device, type IBERICA RK-144
Format 1040×1440 mm
The Varioplan & Variolever system has a maximum speed of 7500 pieces/hour and a maximum pressure of 600 Tm
Die-cut material paper 90～100 gsm (according to quality)
Paper jam 1.5 mm
Corrugated paper 4mm

Equipment Model: JRK-105 Varioplan System

Technical features:
1. Feeder's feeder automatically separates paper and delivers it smoothly and continuously to the conveyor. A single sheet of paper is positioned in the book holder. Nine bookholder bars are precisely transported to a flat press for die cutting and indentation. Photoeye systems and electronic devices control the paper, monitoring and ensuring trouble-free machine operation.
2. Automatic Non-stop Feida can handle a very wide range of materials - from paper to 3mm thick corrugated board can be handled flexibly. Machine conversion is quick and easy. The double-sheet monitor ensures that the paper is accurately conveyed to the transfer table.
3. The paper is fed horizontally from feeder to feeder table. The paper feeder is made of anti-static steel. Equipped with four anti-static conveyor belts. The side stop gauge can fit all sizes of paper and feed the paper to the calibration guide.
4. Beside the paper feeder is the main control panel. It shows the status of the machine by lights and indicates the fault location of the machine.
5. Molded parts Specially made castings and high quality materials ensure its long life and stability at work. Maximum pressure up to 300TM, accurate to 1/100mm, adjustable by handwheel. The moving lower platen moves vertically under the four elbows of the Varioplan system, creating a large, steady pressure. The centerline center system quickly sets the box shape.

Technical Parameters:
The maximum paper size is 750×1050 mm
Minimum paper size 350×400 mm
Minimum paper thickness 90-95 gsm
Maximum board thickness 1.5 mm
Maximum corrugated board thickness 3.0 mm
Maximum operating pressure 300 TM
Maximum speed 8500/h Main motor 15kW
Required pressure 6kg/cm2
