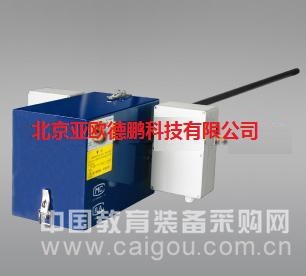

Product Overview: Special S-type anti-blocking anti-corrosion pitot tube m/s flow rate, pressure, temperature measurement output, automatic backflush and control unit, automatic zero calibration, electronic damping and signal retention
Technical Parameters:
1. Flow rate range: 0-40m / s Measurement principle: Bitrust method
2. Pressure range: -2500Pa~+2500Pa
3. Temperature range: 0 ° C ~ 300 ° C
4. Output signal: 3*4-20mA
5. Operating temperature range: -20~+50°C
6. Dimensions: 220W*350H*2000Lmm
7. The probe is a special wear-resistant anti-corrosion material
8. With back-blowing control unit: back-blowing air for instrument, pressure range: 4-8Bar, anti-blowing interface: OD6/4mm ferrule
9. Power supply: 220V AC
10. With manual / automatic zero function
11. Shell protection rating: IP65
12. Installation method: DN65 flange connection (optional ANSI150)
13. Installation accessories: four sets of filters, facing flanges, flange seals and mounting bolts
