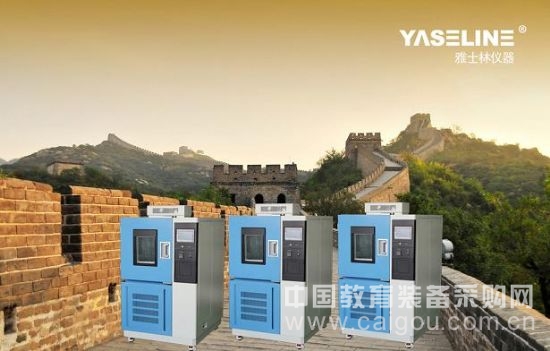

The user who purchases the condensate test chamber should determine the volume of the test chamber based on the size of the test piece. Yashilin Instruments designs and produces the following five different sizes of condensate test chambers according to different user's workpieces. For those who are planning to purchase condensate test chambers in the near future, it is most important to choose the right one for you.
Model YSL/LNS-100
Liner size: 450 × 450 × 500mm
Dimensions: 1200 × 1000 × 1650mm
Model YSL/LNS-225
Liner size: 500×600×750mm
Dimensions: 1300 × 1150 × 1900mm
Model YSL/LNS-500
Liner size: 700 × 800 × 900mm
Dimensions: 1450 × 1400 × 2100mm
Model YSL/LNS-800
Liner size: 800 × 800 × 1000mm
Dimensions: 1550 × 1600 × 2250mm
Model YSL/LNS-010
Liner size: 1000×1000×1000mm
Dimensions: 1850 × 1600 × 2250mm
Temperature range: 20 ° C ~ 60 ° C
Humidity range: 30 ~ 100% RH
Fluctuation / uniformity: ± 0.5 ° C / ± 2 ° C
Humidity deviation: +2, -3% RH
Heating rate: 1.0 ~ 3.0 ° C / min
Condensate test chamber sample load: ≥150KG/layer
Control system: imported microcomputer temperature and humidity integrated controller
Sensor: Platinum resistance. PT100Ω/MV
Heating system: fully independent system, nickel-chromium alloy electric heating heater
Humidification system: external isolation, all stainless steel shallow surface evaporative humidifier
Dehumidification system: using evaporator coil dew point temperature laminar flow contact dehumidification method
Water supply system: humidification water supply adopts automatic control. It can recover residual water. Water saving and consumption reduction
Safety protection: leakage, short circuit, over temperature, water shortage, motor overheating, compressor overpressure, overload, controller power failure memory
Power supply voltage: AC380V±10% 50±0.5Hz three-phase five-wire system
